MIDI Control
|
Full assignable MIDI controls |
DVS Control
|
- rekordbox
- Serato DJ Pro
- TRAKTOR PRO 3
|
What's in the Box
|

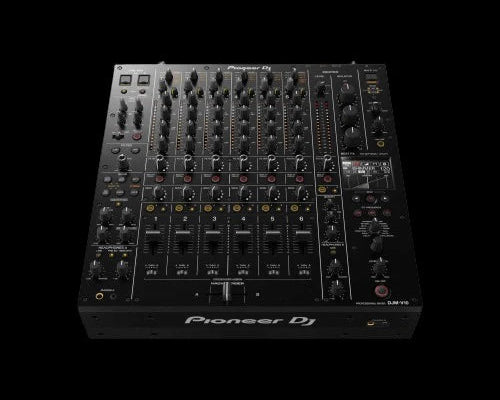

- DJM-V10
- Power Cord
- Warranty (for some regions)
- Quick Start Guide
- Precautions for Use
|
Sampling Rate
|
96 kHz |
Width
|
437.6 mm |
Height
|
107.9 mm |
Depth
|
467 mm |
Weight
|
11.9 kg |
A/D Converter
|
32 bit |
D/A Converter
|
32 bit |
S/N Ratio Line
|
105 dB |
S/N Ratio Phono
|
88 dB |
S/N Ratio Mic
|
79 dB |
Channels
|
6 |
Filter
|
|
SEND
|
- Short Delay
- Long Delay
- Dub Echo
- Reverb
- 2 Externals (1/4-inch TS jack)
|
MULTI I/O
|
- 1/4-inch jack
- USB (Type A)
|
Beat FX
|
- Delay
- Echo
- Ping Pong
- Spiral
- Helix
- Reverb
- Shimmer
- Flanger
- Phaser
- Filter
- Trans
- Roll
- Pitch
- Vinyl Brake
|
Mic Connection
|
- XLR / 1/4-inch Combo Jack
- 1/4-inch TRS Jack
|
Inputs
|
- 6 DIGITAL (Coaxial)
- 6 LINE (RCA)
- 4 PHONO (RCA)
|
Send/Return
|
- 3 SEND (1/4-inch TS jack)
- 3 RETURN (1/4-inch TS jack)
|
LAN
|
1 |
Outputs
|
- 2 MASTER (XLR, RCA)
- 1 BOOTH (1/4 inch TRS Jack)
- 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
- 1 REC OUT (RCA)
- 1 DIGITAL (AES/EBU)
- 1 MIDI (DIN)
|
USB
|
- 2 USB B ports
- 1 USB A port
|
